Ultimate pump installation

Lucky75

Junior Member

Ultimate pump installation

jeudi 13 août 2020, 09:14

Hello guys,
I buy two Ultimate pumps (Product no.: 41108) with decoupling kit Product no.: 41129. Also have a Shagy Sandwich Product no.: 41079. I also want to use Alphacool decoupling kit Eheim/Hydor/Laing cover 4 decouplers Article no.: 52007. I have and Alphacool pump mount universal for 120-140mm fans/radiators Article no.: 52217.


My question is what and how to use to mount that two pumps over the 140 mm FAN ?

Hufeisen

Senior Member

jeudi 13 août 2020, 19:55

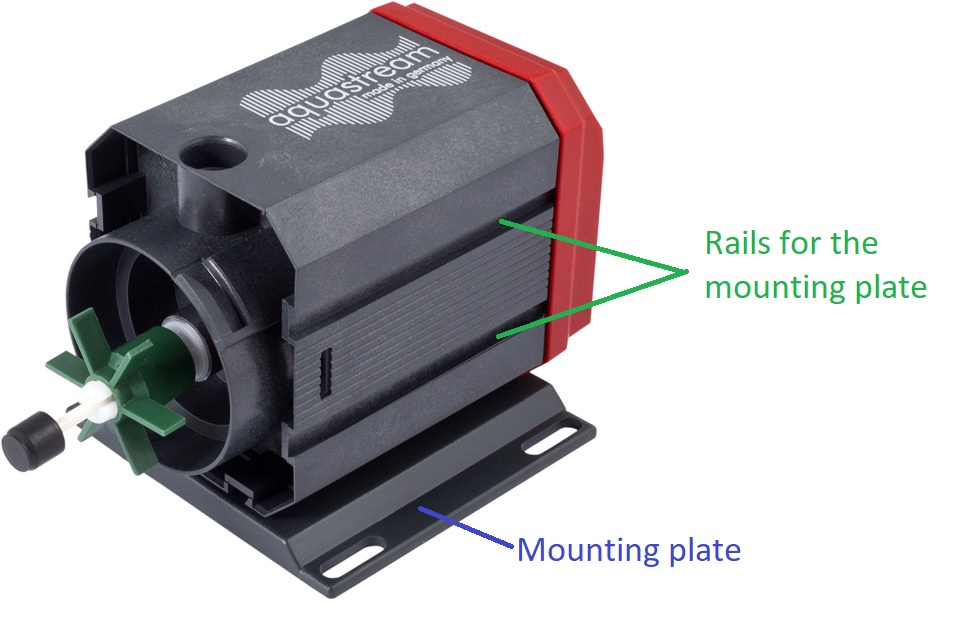

The Aquastream Ultimate pump comes with a mounting plate. (see attached picture)
The mounting plate can be connected to the side or the bottom of the pump.
The mounting plate has 4 long holes, you can put screws in there.
Hufeisen a envoyé le fichier suivant :

Lucky75

Junior Member

vendredi 14 août 2020, 09:38

I think you do not get my point...

I want to put this pumps over 2 140 mm FANs with decoupling tools.
And here is question ... how to fix aquastream decoupling kit with alphacool 140 mm FAN accessories bracket ?
In e-shops is written that they are perfectly compatible, but in real bolt holes are not equal.
