Aquasuite questions : , alarms, fan hysteresis?

  • 1
  • 2

Asryan

Junior Member

Aquasuite questions : , alarms, fan hysteresis?

Friday, August 28th 2020, 6:29pm

Hi,

I just got a Quadro today and I've installed aquasuite to control my fans and AIO


I have an arctic liquid freezer Aio and all seems good but :
  • how to set up some alarms if needed?
  • how to set up fan hysteresis ? :) it's kinda annoying to have the fan speed changing all the time... I

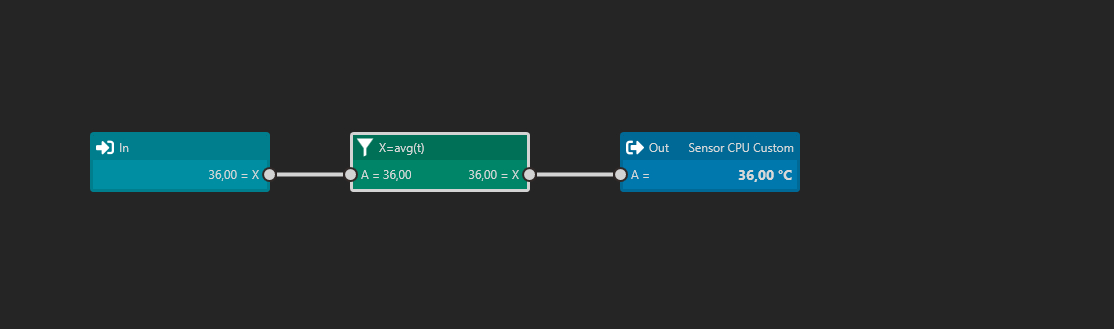

    Edit : for hysteresis is it the right way to do it? I set up a virtuel software sensor with aveeage @ 5 sec

Thanks !
Asryan has attached the following image:
  • Annotation 2020-08-28 230757.png

This post has been edited 9 times, last edit by "Asryan" (Aug 28th 2020, 11:09pm)

k2viper

Full Member

Saturday, August 29th 2020, 12:03am

You're on the right way.
But first of all, you selected bad source for fan control, CPU temp can have spikes and is bad as a data source for fans/pumps/etc.
You'd better rely on water temperature.
At least, to have CPU temp output more plain, use both Average(t) with more then 5 secs and Low pass filter.

Asryan

Junior Member

Monday, August 31st 2020, 12:54pm

Quoted from "k2viper"

You're on the right way.
But first of all, you selected bad source for fan control, CPU temp can have spikes and is bad as a data source for fans/pumps/etc.
You'd better rely on water temperature.
At least, to have CPU temp output more plain, use both Average(t) with more then 5 secs and Low pass filter.
I don't have the water temps with my Arctic Liquid freezer, i can"t use it.

How does low pass filter work?

This post has been edited 2 times, last edit by "Asryan" (Aug 31st 2020, 12:57pm)

Stephan

Administrator

Monday, August 31st 2020, 1:48pm

You can build the alarm path you need in the notification area of the Playground.
For examples just add a sensor value as input and compare it to a fixed value (the alarm level). Then connect it to the notification.

Asryan

Junior Member

Monday, August 31st 2020, 2:32pm

I'm trying to set one up but can't find how, do you have an example please? thanks

sebastian

Administrator

Monday, August 31st 2020, 2:34pm

k2viper

Full Member

Monday, August 31st 2020, 4:17pm

Quoted from "Asryan"



How does low pass filter work?

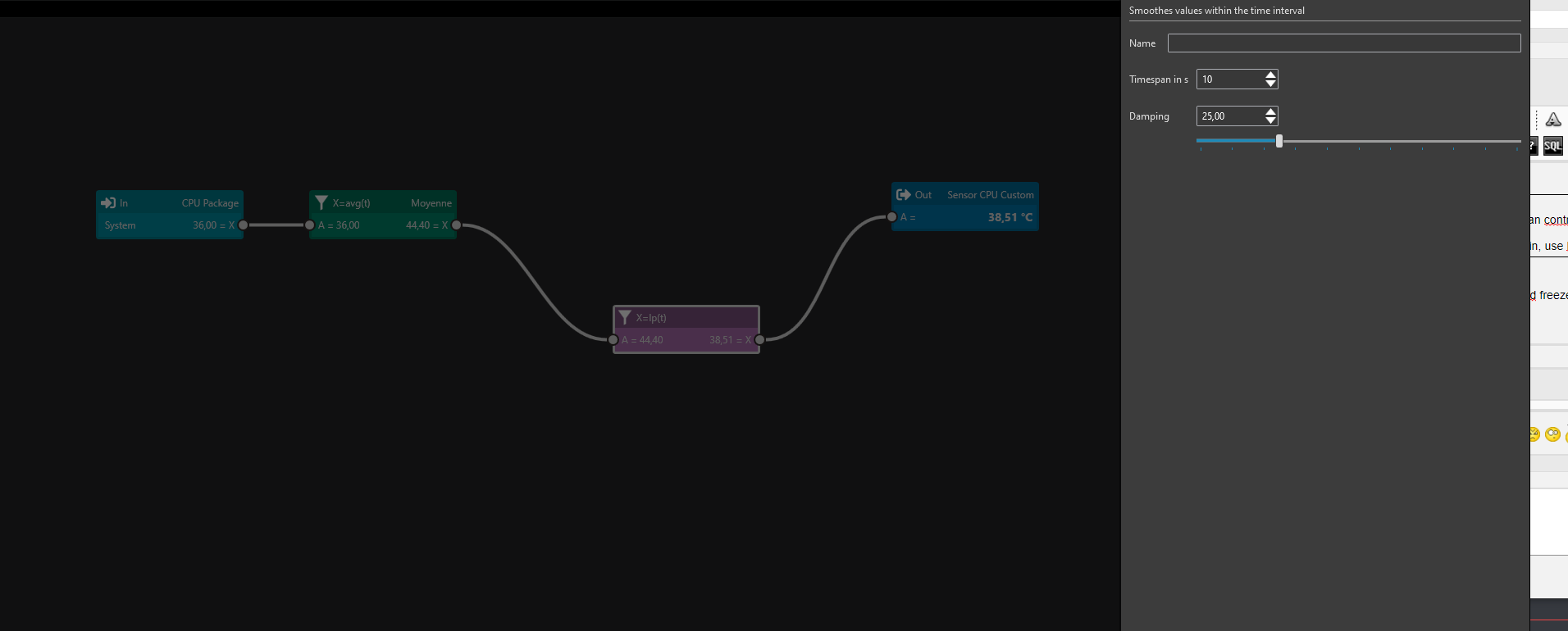

Well, there is a description inside this Playground element, it is seen on your screenshot.
"Smoothes values within the time interval"

Asryan

Junior Member

Monday, August 31st 2020, 7:19pm

What values should I use ? what is damping?

sebastian

Administrator

Monday, August 31st 2020, 8:02pm

Quoted from "Asryan"

what is damping?
when the value is higher, changes from the input are higher damped

Asryan

Junior Member

Tuesday, September 1st 2020, 4:52pm

Ok sorry it's a bit obscure for me, if someone can tell me what would be "good" values.

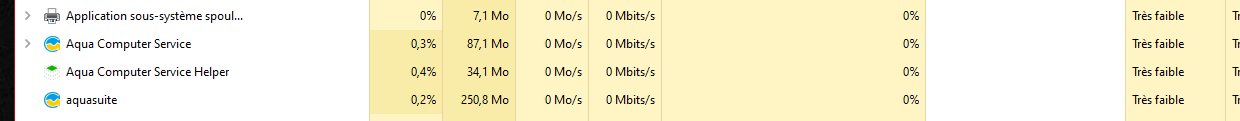

Also are all those services needed to run? thanks

k2viper

Full Member

Tuesday, September 1st 2020, 6:44pm

Quoted from "Asryan"

Ok sorry it's a bit obscure for me, if someone can tell me what would be "good" values.

Also are all those services needed to run? thanks[attach]7714[/attach]
"Good values" is to select another source from CPU core temp to control your fans. Use water temp.
Though, you increase Time interval and Damping inside Low pass filter, and output will be more filtered.

sebastian

Administrator

Tuesday, September 1st 2020, 7:55pm

Quoted from "Asryan"

an tell me what would be "good" values
try it out

Asryan

Junior Member

Wednesday, September 2nd 2020, 7:06am

Quoted from "sebastian"

Quoted from "Asryan"

an tell me what would be "good" values
try it out
As i Said I can't select water value, it's non existent in my AIO..

damping low by deffect is 25 what would be better to put?

k2viper

Full Member

Wednesday, September 2nd 2020, 9:02am

Better increase time interval.
Even if you cant use water temp, there is a plenty other system temps that are not so spiky as CPU core temps.
Motherboard VRM for example, is also a good source reflecting system load. Stop thinking CPU core is your only source.

Asryan

Junior Member

Wednesday, September 2nd 2020, 1:17pm

Oh ok well i left it at 5sec for average and time interval
damping at 25

System stays quite silent and cool,

Fans and pumps are @ 35% speed untill 50c, them ramps up to 100@ 65c


Idle temps : 36c
gaming temps : between 50 and 60

This post has been edited 1 times, last edit by "Asryan" (Sep 2nd 2020, 1:19pm)

InfoSeeker

Senior Member

Wednesday, September 2nd 2020, 1:48pm

Quoted from "Asryan"

As i Said I can't select water value, it's non existent in my AIO.

It may not be as reactive as submersion, but you could tape a temp sensor to the tubing.

k2viper

Full Member

Wednesday, September 2nd 2020, 7:26pm

Quoted from "InfoSeeker"

It may not be as reactive as submersion, but you could tape a temp sensor to the tubing.
Or to the radiator core.

Asryan

Junior Member

Thursday, September 3rd 2020, 8:07am

I am not sure that is possible on an AIO... I don't have a custom WC but an Arctic Liquid Freezer 2.

All seems good anyways, temps are fine and the rig is silent, it's all I ask :)

Asryan

Junior Member

Monday, November 9th 2020, 12:37pm

Is 25 ok for damping or should i tweak it?

k2viper

Full Member

Tuesday, November 10th 2020, 8:02am

It is way faster if you try for yourself which value suit you most.
