Which device should I select?

sircody01

Junior Member

Which device should I select?

Tuesday, March 10th 2015, 5:19pm

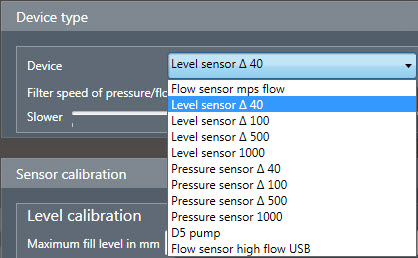

I just setup this D5 pump adapter with this reservoir. Now I'm configuring the fill level sensor. Can anyone guide me on which device I should select (see attached screen shot) for proper operation? There are multiple selections and I can't tell which one is the right one.
sircody01 has attached the following image:
  • 2015-03-10_10-28-51.jpg

This post has been edited 1 times, last edit by "sircody01" (Mar 10th 2015, 7:35pm)

InfoSeeker

Senior Member

Tuesday, March 10th 2015, 8:13pm

At the end of the Pump Adapter Manual it says:

Quoted

Fill level sensor (art. no. 41095 only)
Please refer to the manual “mps”. The sensor installed into the pump adapter is a “mps
pressure ∆40“. Install a pressure equalizing membrane into the top of the reservoir.

So select the ∆40 you have highlighted in your image.

EDIT: be sure to instal the Pressure equalisation membrane mentioned into one of the top ports of the reservoir, or the results will be incorrect.

This post has been edited 1 times, last edit by "InfoSeeker" (Mar 10th 2015, 8:28pm)

sircody01

Junior Member

Tuesday, March 10th 2015, 10:54pm

Ah I see it now. Thank you for pointing out what I overlooked.

Thank you for the warning about the membrane. It is installed as stated.
