Curve Controller Question

Lieber Besucher, herzlich willkommen bei: Aqua Computer Forum. Falls dies Ihr erster Besuch auf dieser Seite ist, lesen Sie sich bitte die Hilfe durch. Dort wird Ihnen die Bedienung dieser Seite näher erläutert. Darüber hinaus sollten Sie sich registrieren, um alle Funktionen dieser Seite nutzen zu können. Benutzen Sie das Registrierungsformular, um sich zu registrieren oder informieren Sie sich ausführlich über den Registrierungsvorgang. Falls Sie sich bereits zu einem früheren Zeitpunkt registriert haben, können Sie sich hier anmelden.

InfoSeeker

Senior Member

Curve Controller Question

Samstag, 25. April 2015, 19:23

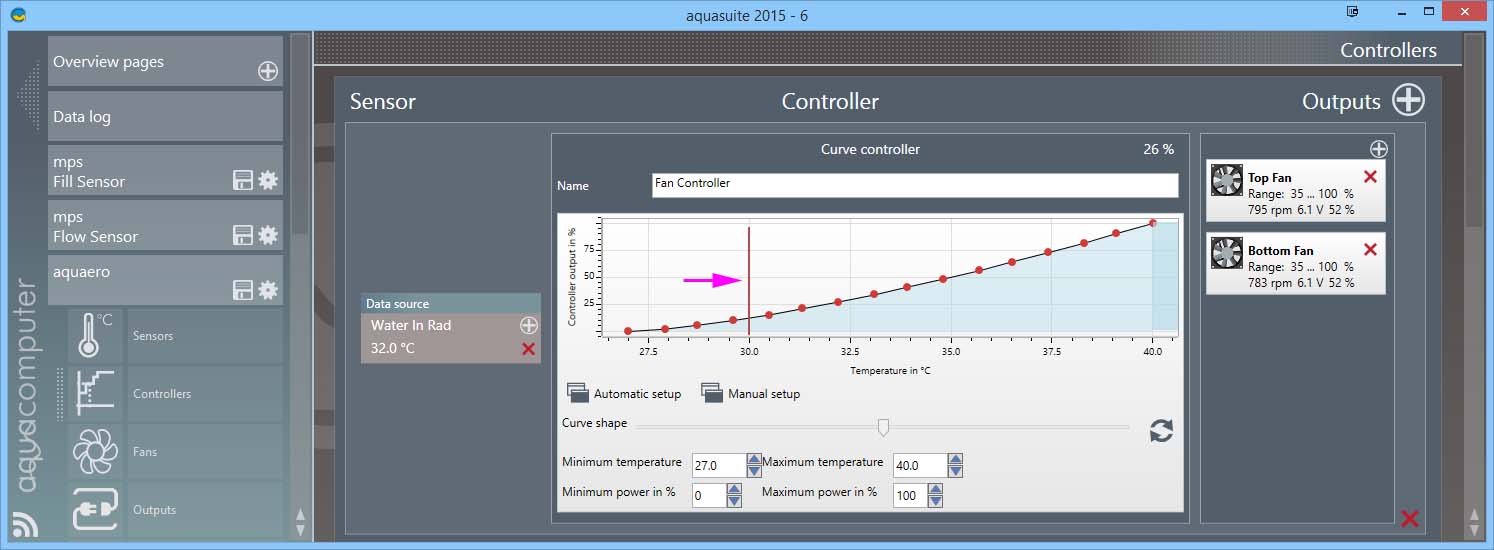

What does the vertical red bar set/control in the Curve Controller under the aquasuite aquaero tab???

Dieser Beitrag wurde bereits 1 mal editiert, zuletzt von »InfoSeeker« (25. April 2015, 20:22)

mandrix

Full Member

RE: Curve Controller Question

Sonntag, 26. April 2015, 20:44

Zitat von »InfoSeeker«

What does the vertical red bar set/control in the Curve Controller under the aquasuite aquaero tab???

[attach]5233[/attach]

On my curve controllers the red line is on the startup temperature.

InfoSeeker

Senior Member

Sonntag, 26. April 2015, 23:31

"Start-up temperature", meaning to the left of the bar the controller ignores the curve and is at zero out, and for temperatures to the right of the bar it follows the curve?

Or does it maintain power out at the level on the curve where it intersects for values below the intersection?

Probably the first scenario.

mandrix

Full Member

Sonntag, 26. April 2015, 23:55

It's missing on your pic, but when it's set to manual it should show an option for start up temperature. Since I use air/water delta which in some conditions may actually be zero or below, I set mine to -1*, and that is where the red line is on my graphs.

InfoSeeker

Senior Member

Montag, 27. April 2015, 03:44

Ahhh, I see now... I had just used automatic and not seen the manual side.

Thank you.

mandrix

Full Member

Montag, 27. April 2015, 12:54

Zitat von »InfoSeeker«

Ahhh, I see now... I had just used automatic and not seen the manual side.

Thank you.

Great! I thought that might be why. I never used the Automatic feature.

Jakusonfire

Full Member

Dienstag, 28. April 2015, 08:57

The Startup temp is only the temp set that the fans will initially start at. So, on powerup the fans will not run til startup temp is hit, after that the curve controller is followed, including if the sensor falls below startup temp.

mandrix

Full Member

Dienstag, 28. April 2015, 12:11

Zitat von »Jakusonfire«

The Startup temp is only the temp set that the fans will initially start at. So, on powerup the fans will not run til startup temp is hit, after that the curve controller is followed, including if the sensor falls below startup temp.

Yep, that's the way it works. Once when my sensors calibration drifted off, a bank of fans didn't start and it took a bit to realize what happened.
