The connection wasn't right so I connected it to the quadro. I see the temperature of the coolant in my loop after the radiators; and the high flow next is after the cpu & gpu block.

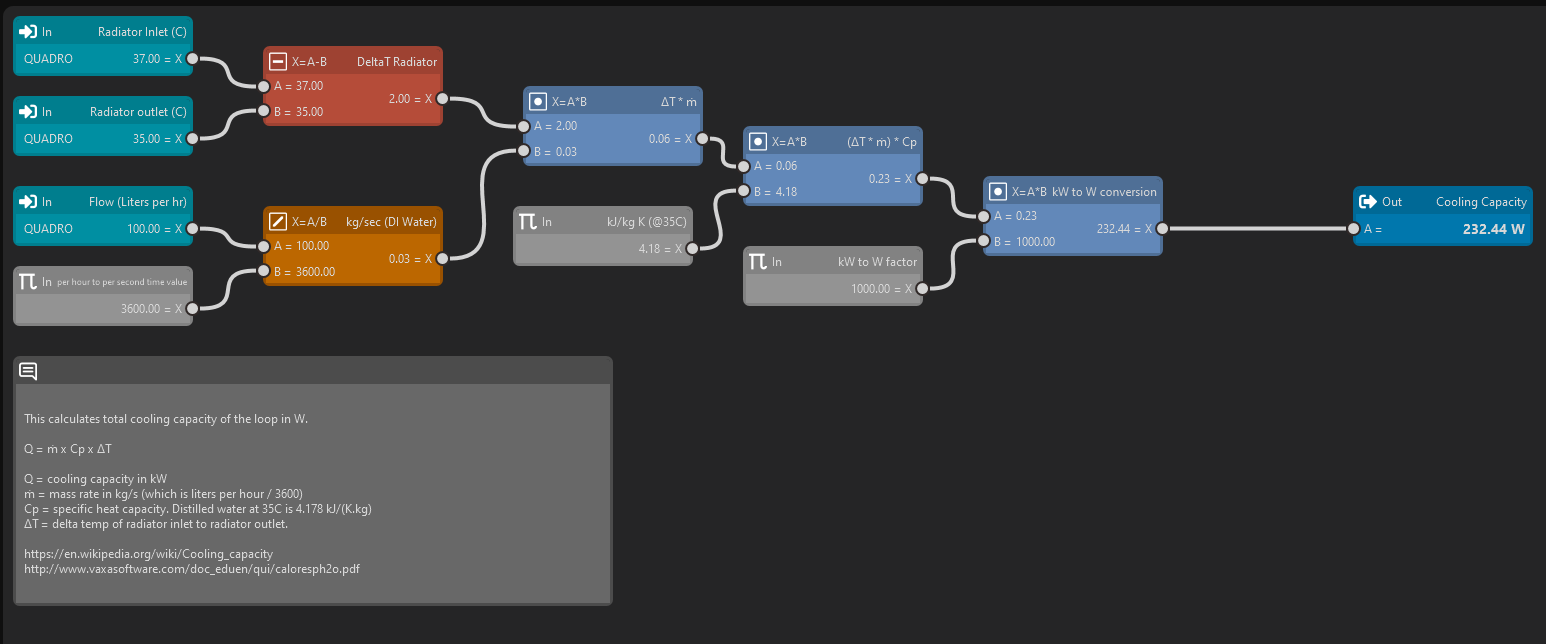

I want to manually make a calculation of power in the playground.

What is the equation I need?

Thanks so much!

I guess its down the the accuracies of the temperature sensors. My value is currently zero.

Zitat von »Remayz«

don't you have the sensors inverted? that would give a negative value that aquasuite may default to 0 maybe

I have my cold water readout higher than my hot water readout. I put that down to inaccuracy of the sensors. Aquasuite has the ability to offset the values but at that point it makes a calculation based on your own offsets. I have an air sensor which I find more believable against the hot water temp (after cpu+gpu block). I've just added my Mo-Ra IV 600 to the loop and that shows difference between the two sensors.

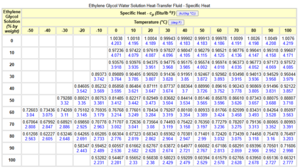

I'm also not using distilled water - so the calculation itself doesn't apply. Also not sure how litres get converted to kg in the calculation. All in all its a hot mess trying to calculate power dissipated.

I've got my Mo-Ra set to a target temp of 35'c and my internal radiators set to 36'c and my internals fans don't spin up above a minimum. Without the Mo-Ra the internals alone would end up 38'c at full speed. My flow rate has dropped 50lph to 300lph with a dual ek pump and a single heatkiller Mo-Ra pump. I have a 3m run to the external radiator.

Edit: Just changed my reading for the cold temp and now getting a reading. I'd say its all relative. I expect the cooling capacity to change when under load.

I asked on a Physics forum to explain the Math I didn't get:
https://www.physicsforums.com/threads/ca…hanger.1079848/
