Testing request
Donnerstag, 1. August 2013, 10:04
Hi folks,
I have committed initial support for reading device (sensor, fan, etc...) names to my devel branch of aerotools-ng and need some testing feedback to ensure the key aspects of how the device names are being retrieved is working properly for other Linux users. The method I was forced to use isn't ideal, and under some rare circumstances has the probability of failing. I would like to ensure that failures are not a legitimate concern by getting test feedback from other systems of varying performance levels.
If you have the time and inclination, please lend a hand by cloning my devel branch and giving it a try.
Notes: As of commit 016ff1753b2d40f39d74dfc762196bde9ad98b12 sensor names are printed in default full (aerocli -a -o default) output mode only, so please try this mode and report back on your findings.
Example of expected results from my system:
Thanks in advance for your help!
I have committed initial support for reading device (sensor, fan, etc...) names to my devel branch of aerotools-ng and need some testing feedback to ensure the key aspects of how the device names are being retrieved is working properly for other Linux users. The method I was forced to use isn't ideal, and under some rare circumstances has the probability of failing. I would like to ensure that failures are not a legitimate concern by getting test feedback from other systems of varying performance levels.
If you have the time and inclination, please lend a hand by cloning my devel branch and giving it a try.
Notes: As of commit 016ff1753b2d40f39d74dfc762196bde9ad98b12 sensor names are printed in default full (aerocli -a -o default) output mode only, so please try this mode and report back on your findings.
Example of expected results from my system:
|
Quellcode |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 |
----------- System ----------- Name = 'aquaero 5' Time (UTC) = 2013-08-01 09:05:29 Time (local) = 2013-08-01 01:05:29 Uptime = 108d 11:35:28 Uptime total = 1y 22d 20:11:57 Serial number = XXXXX-YYYYY Firmware = 1027 Bootloader = 101 Hardware = 5600 CPU Temp = 41.28 °C (+0.00) ---- Temperature Sensors ----- Sensor 1 'Sensor 1t' = 30.93 °C (+0.00) Sensor 2 'Sensor 2' = not connected Sensor 3 'Sensor 3' = not connected Sensor 4 'Sensor 4' = not connected Sensor 5 'Sensor 5' = not connected Sensor 6 'Sensor 6' = not connected Sensor 7 'Sensor 7' = not connected Sensor 8 'Sensor 8' = not connected Sensor 9 'Unknown' = not connected Sensor 10 'Unknown' = not connected Sensor 11 'Unknown' = not connected Sensor 12 'Unknown' = not connected Sensor 13 'Unknown' = not connected Sensor 14 'Unknown' = not connected Sensor 15 'Unknown' = not connected Sensor 16 'Unknown' = not connected ---- Virtual Sensors ----- Sensor 1 'Virtual sensor 1t' = 32.86 °C (+0.00) Sensor 2 'Virtual sensor 2t' = not connected Sensor 3 'Virtual sensor 3t' = not connected Sensor 4 'Virtual sensor 4t' = not connected ---- Software Sensors ----- Sensor 1 'Software sensor 1t' = 51.00 °C (+0.00) Sensor 2 'Software sensor 2t' = not connected Sensor 3 'Software sensor 3t' = not connected Sensor 4 'Software sensor 4t' = not connected Sensor 5 'Software sensor 5t' = not connected Sensor 6 'Software sensor 6t' = not connected Sensor 7 'Software sensor 7t' = not connected Sensor 8 'Software sensor 8t' = not connected ---- Other Sensors ----- Sensor 1 = not connected Sensor 2 = not connected Sensor 3 = not connected Sensor 4 = not connected Sensor 5 = not connected Sensor 6 = not connected Sensor 7 = not connected Sensor 8 = not connected Sensor 9 = not connected Sensor 10 = not connected Sensor 11 = not connected Sensor 12 = not connected Sensor 13 = not connected Sensor 14 = not connected Sensor 15 = not connected Sensor 16 = not connected ------------ Fans ------------ Fan 1 'Fan 1t': 3916rpm @ 99% 11.87 V 'Fan amplifier 1t' 155 mA 34.80 °C Fan 2 'Fan 2t': 0rpm @ 0% 0.03 V 'Fan amplifier 2t' 0 mA 34.80 °C Fan 3 'Fan 3t': 0rpm @ 0% 0.02 V 'Fan amplifier 3t' 0 mA 34.62 °C Fan 4 'Fan 4t': 0rpm @ 99% 11.80 V 'Fan amplifier 4t' 0 mA 34.62 °C Fan 5 'Fan 5t': 0rpm @ 99% 12.21 V 'Fan amplifier 5t' 0 mA 51.32 °C Fan 6 'Fan 6t': 0rpm @ 99% 12.21 V 'Fan amplifier 6' 0 mA 52.42 °C Fan 7 'Fan 7t': 0rpm @ 99% 12.19 V 'Fan amplifier 7' 0 mA 50.22 °C Fan 8 'Fan 8': not connected Fan 9 'Fan 9': not connected Fan 10 'Fan 10': not connected Fan 11 'Fan 11': not connected Fan 12 'Fan 12': not connected -------- Flow Sensors -------- Flow 1 'Flow 1t': 0 l/h Flow 2 'Flow 2t': 0 l/h Flow 3 'Flow 3t': 0 l/h Flow 4 'Flow 4t': 0 l/h Flow 5 'Flow 5t': 0 l/h Flow 6 'Flow 6': 0 l/h Flow 7 'Flow 7': 0 l/h Flow 8 'Flow 8': 0 l/h Flow 9 'Flow 9': 0 l/h Flow 10 'Flow 10': 0 l/h Flow 11 'Flow 11': 0 l/h Flow 12 'Flow 12': 0 l/h Flow 13 'Flow 13': 0 l/h Flow 14 'Flow 14': 0 l/h ------- Liquid Levels -------- Level 1 'Fill level 1': 0% Level 2 'Fill level 2': 0% Level 3 'Fill level 3': 0% Level 4 'Fill level 4': 0% -------- Aquastreams --------- Aquastream 1: not connected Aquastream 2: not connected |
Thanks in advance for your help!
Freitag, 2. August 2013, 01:53
works fine, here are the outputs. names are correct
Thanks Raptor 2101!
Since you have Aquastreams: can you tell me if they are the original Aquastream or Aquastream XT? The Ae5 makes a distinction between the two and I want to make sure I am using the appropriate values/names.
Also, if you wouldn't mind, I would appreciate it if you could run the following script and letting me know what it says at the end of execution:
|
|
Quellcode |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 |
#!/bin/bash
date1=$(date +"%s")
rm test-output.txt
for i in {1..1000}
do
echo "Iteration $i"
echo "Iteration $i" >>test-output.txt
../aerotools-ng/bin/aerocli >>test-output.txt 2>&1
sleep 5
done
date2=$(date +"%s")
diff=$(($date2-$date1))
echo "Test completed in $(($diff / 60)) minutes and $(($diff % 60)) seconds"
FAILURES=$(grep "failed" test-output.txt |wc -l)
PERCENT_FAILED=$(echo "scale=4; ($FAILURES / $i) * 100" | bc -q 2>/dev/null)
echo "Encountered $FAILURES failures during test ($PERCENT_FAILED%)"
|
You may need to tweak the path to aerocli as appropriate for your system. The script runs aerocli 1000 times and counts failures. it will likely take between 5-10 minutes to complete execution depending on the number of failures and your system performance.
The output should look something like this:
|
|
Quellcode |
1 2 3 4 5 6 7 |
... Iteration 997 Iteration 998 Iteration 999 Iteration 1000 Test completed in 6 minutes and 28 seconds Encountered 2 failures during test (.2000%) |
The part I am interested in is just the last two lines
Edit: Added sleep to loop so as to not thrash the USB subsystem
Samstag, 3. August 2013, 00:22
Test completed in 14 minutes and 56 seconds
Encountered 505 failures during test (50.5000%)
Testsystem: Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz (Quad Core) 32 GB Ram/64Bit Ubuntu
I have attached two AquaStream XT Standard.
Thanks for the test report and additional info!
Unfortunately with a failure rate like that, it looks like I have some more work to do... Which kernel version are you currently running? I have seen some additional oddities with the hiddev version that is part of kernel 3.2 and wonder if there are some additional avenues to explore in that area...
Donnerstag, 8. August 2013, 16:57
i encounter some problems while running the you new code on my productive machine. While using the munin plugin i have to remove the "-d /dev/usb/hiddev0" statement cause this leads to a "bad file descriptor"-Error. using the cli without this statement all works well...
I will look into it.
Freitag, 9. August 2013, 08:04
i encounter some problems while running the you new code on my productive machine. While using the munin plugin i have to remove the "-d /dev/usb/hiddev0" statement cause this leads to a "bad file descriptor"-Error. using the cli without this statement all works well...
I will look into it.
This is now fixed as of commit 4ac7f2c57128edadcf241f6602cc6078eadc7f1f
Samstag, 10. August 2013, 00:25
ok deployed the new version correctly...
with the old version i encoutered a situation (long time test, 3 requested every 5 minutes) where the AE5 was unable to be queried by the aerocli (it simply hangs and got sombied) i have to do a soft-reset via
to get access to the AE5 again...
with the old version i encoutered a situation (long time test, 3 requested every 5 minutes) where the AE5 was unable to be queried by the aerocli (it simply hangs and got sombied) i have to do a soft-reset via
|
|
Quellcode |
1 2 |
echo 0 > /sys/bus/usb/devices/3-1/authorized echo 1 > /sys/bus/usb/devices/3-1/authorized |
Samstag, 10. August 2013, 04:22
ok deployed the new version correctly...
with the old version i encoutered a situation (long time test, 3 requested every 5 minutes) where the AE5 was unable to be queried by the aerocli (it simply hangs and got sombied) i have to do a soft-reset viato get access to the AE5 again...
Quellcode
I have seen something similar that occurs on both 2.6 and 3.2 kernels and added some code in the last commit that was intended to help detect when it occurs. Unfortunately it doesn't seem to work. What I see happening is that read() operations on the hiddev device just block indefinitely as though there was no data being sent on the bus. What I added in the last commit was an initial select() that should be able to detect if data is available for reading before starting to read, and timing out if it is not. Unfortunately the select() call succeeds even in this situation so there is more work to be done to figure it out. I did a bit of searching and couldn't find any references to similar problems being reported on other devices/systems, so we may need to blaze our own trail again....
Thanks for the info on /sys/bus/usb/devices/.../authorized. I had simply been unplugging/re-plugging the Ae5 to correct this, but detecting/automating the recovery would be best. It may be time to dust off my earlier experiments with udev to see if we can automate the reset when it occurs again.
Montag, 12. August 2013, 09:44
ok with you new version, the "hang to zomby" happens quite often. While running the old version for a weak (through munin) the new version got two hangs at this weakend...

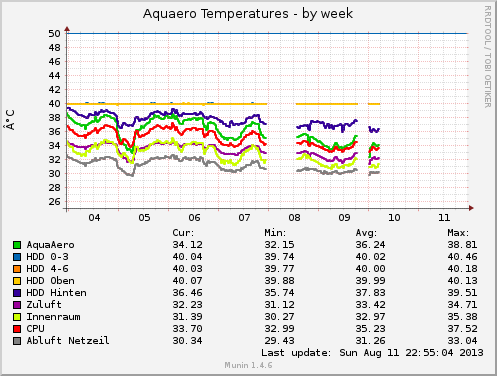

Duration: [attach]4278[/attach]
Thanks for the heads-up. I am going to have a go at removing the read step (which is just a loop looking for new reports) and only use the ioctls instead since they seem to be consistent and reliable.
Dienstag, 13. August 2013, 02:11
ok with you new version, the "hang to zomby" happens quite often. While running the old version for a weak (through munin) the new version got two hangs at this weakend...
Duration: [attach]4278[/attach]
Thanks for the heads-up. I am going to have a go at removing the read step (which is just a loop looking for new reports) and only use the ioctls instead since they seem to be consistent and reliable.
I have prototyped the alternate approach in my sandbox (commit a104b34be9290dee691529ce6dee08a8ff87fcc8). I need to give it some more testing though since I did manage to hang my devel box a few times as I was tweaking things. I must admit, this is the most fragility I have seen with stuff running in user space on Linux for a long time and I have been a Linux hacker since kernel 0.99pl8...
Dienstag, 13. August 2013, 11:31
I have prototyped the alternate approach in my sandbox (commit a104b34be9290dee691529ce6dee08a8ff87fcc8). I need to give it some more testing though since I did manage to hang my devel box a few times as I was tweaking things. I must admit, this is the most fragility I have seen with stuff running in user space on Linux for a long time and I have been a Linux hacker since kernel 0.99pl8...
did you freeze youre whole machine or only the AE5-USB-Interface? (just to determine if i deploy your sandbox on my productive machine...
)
