Farbwerk 360 and dead LED strips and out of voltage error? What to do?

Maki911

Junior Member

Farbwerk 360 and dead LED strips and out of voltage error? What to do?

Freitag, 10. April 2020, 20:04

Yesterday I received almost all AC shipment and today I ve stared unpacking and connecting everything, so I decided to start with Farbwerk 360, out of 4 LED strips two wont light up and one have defective last LED light (its just blinking),when I tried to change colors, it gave mi this error... Nothing seams broken of flimsy on the connectors... Does anyone have any idea on what to do? try?

»Maki911« hat folgende Datei angehängt:

LED.jpg (399,61 kB - 205 mal heruntergeladen - zuletzt: 29. Oktober 2025, 10:14)

AE5probigNGslave

Junior Member

RE: Farbwerk 360 and dead LED strips and out of voltage error? What to do?

Freitag, 10. April 2020, 23:08

Zitat von »Maki911«

Yesterday I received almost all AC shipment and today I ve stared unpacking and connecting everything, so I decided to start with Farbwerk 360, out of 4 LED strips two wont light up and one have defective last LED light (its just blinking),when I tried to change colors, it gave mi this error... Nothing seams broken of flimsy on the connectors... Does anyone have any idea on what to do? try?

Please see attached pictures and post same ones.

I think that best way is to connect only one strip and test each channel separate.

BR

George

»AE5probigNGslave« hat folgende Bilder angehängt:

Maki911

Junior Member

Sonntag, 12. April 2020, 21:16

Now just one LED strip work with all channels..

AE5probigNGslave

Junior Member

Sonntag, 12. April 2020, 21:24

Zitat von »Maki911«

Now just one LED strip work with all channels..

Can you please post same images as me. Important is 5V voltage.

There was an error message- voltage out of range, visible on your post.

Maki911

Junior Member

Montag, 13. April 2020, 20:28

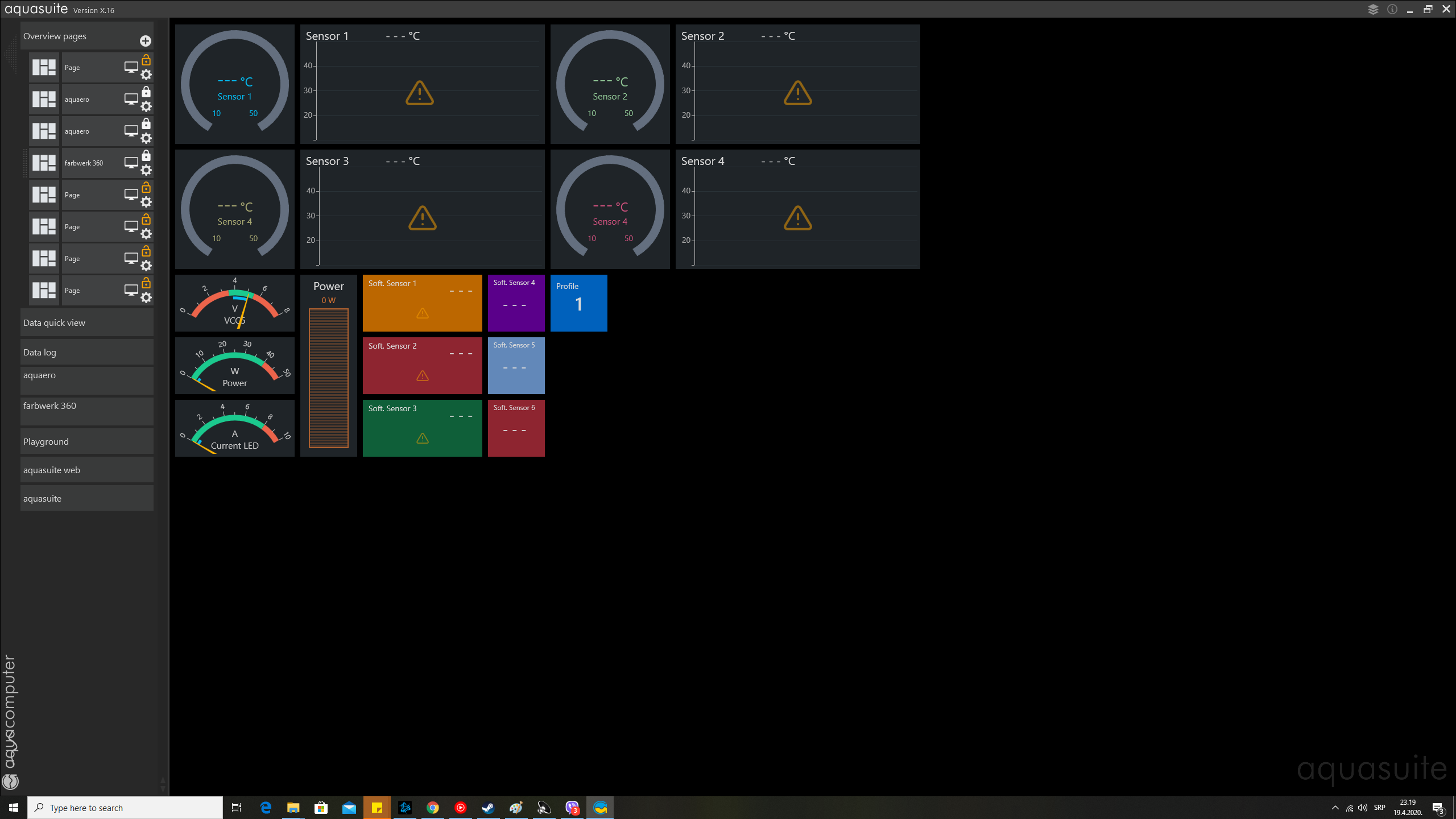

Sorry, I totally forgot to take a screenshot....

»Maki911« hat folgendes Bild angehängt:

AE5probigNGslave

Junior Member

Dienstag, 14. April 2020, 17:17

Zitat von »Maki911«

Sorry, I totally forgot to take a screenshot....

It seems that posted page is with farbwerk 360 without load. Voltage is OK. If you light up all strips (1 per chanell) what is visual of this page of farbwerk 360?

Please post photo of connection strip to strip, important is that strip has IN and OUT and connection cable between strips is twisted, not in the line.

Maki911

Junior Member

Sonntag, 19. April 2020, 19:38

Here you go, this is after channel 1 is connected with 3 LEDs strips, yes, cable connection is twisted OUT>IN direction and channel 3 with 1 LED strip. Channel 3 lights up and channel 1 just the first LED strip....

»Maki911« hat folgendes Bild angehängt:

AE5probigNGslave

Junior Member

Sonntag, 19. April 2020, 22:51

Zitat von »Maki911«

Here you go, this is after channel 1 is connected with 3 LEDs strips, yes, cable connection is twisted OUT>IN direction and channel 3 with 1 LED strip. Channel 3 lights up and channel 1 just the first LED strip....

If you have covered in RGBpx of farbwerk 360 on channel 1 all 45 LEDs for control and only one strip (15 LEDs) working and rest of LEDs are without any action (and these 2 strips are tested like single and working good) there is probably problem in farbwerk 360 and unit can be claimed like warranty case.

Important is to check every connections and wirings. In same way check setting of RGBpx on every channel.

Maki911

Junior Member

Sonntag, 19. April 2020, 23:20

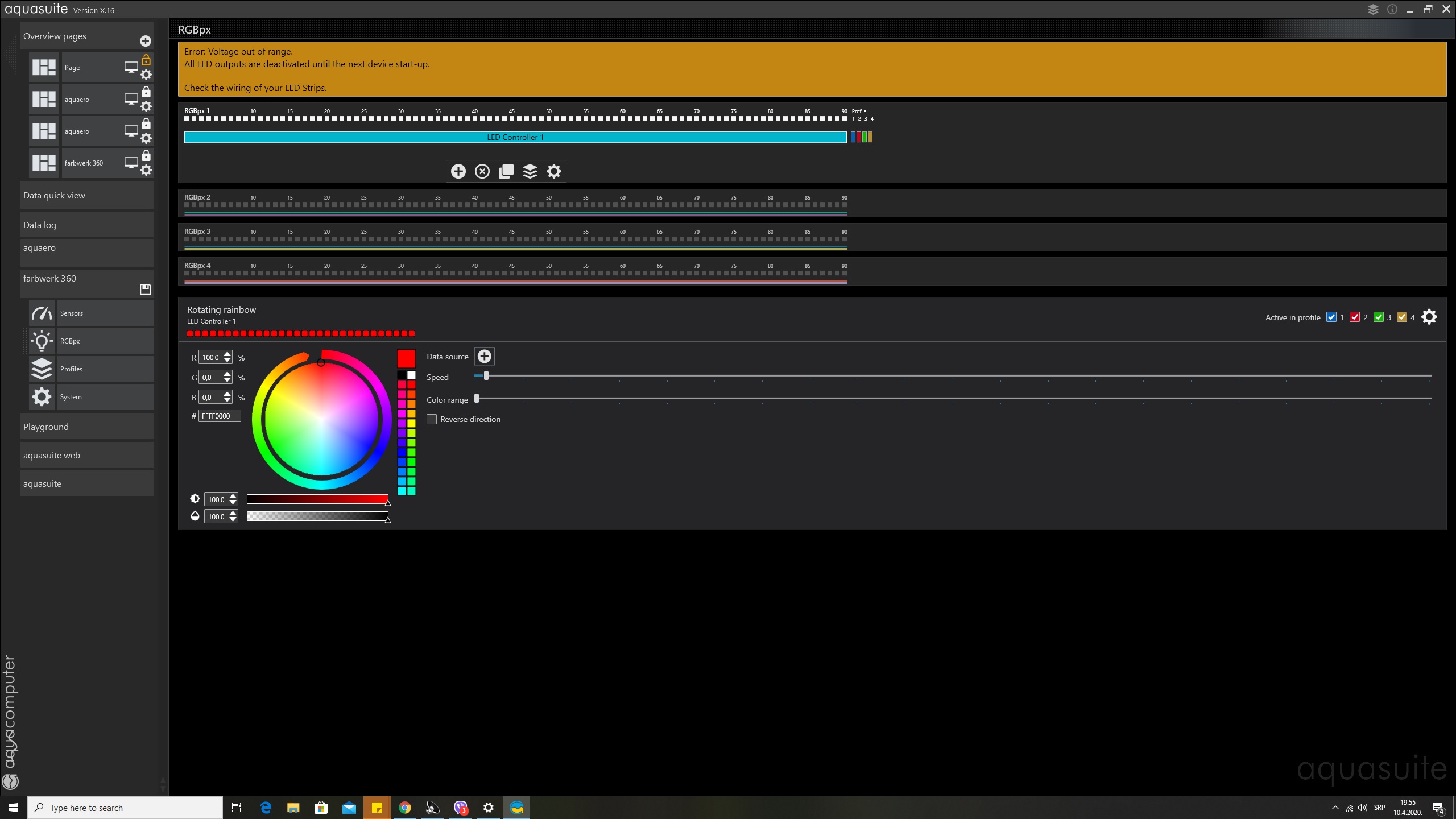

Tried again, one strip per channel, it worked until it flashed again the same error (Voltage out of range) and started red light blinking on the farbwerk 360...

»Maki911« hat folgendes Bild angehängt:

AE5probigNGslave

Junior Member

Montag, 20. April 2020, 00:50

Zitat von »Maki911«

Tried again, one strip per channel, it worked until it flashed again the same error (Voltage out of range) and started red light blinking on the farbwerk 360...

From your posted picture is vissible that your voltage is under 4 Volts only on 60 LEDs !
What do you have for power supply unit (PSU)?
Do you not use some nice non-brand extension cable for PSU with bad crimp?

I have on full load = Brightness - 100% on 99 LEDs stable voltage 4,6 V.

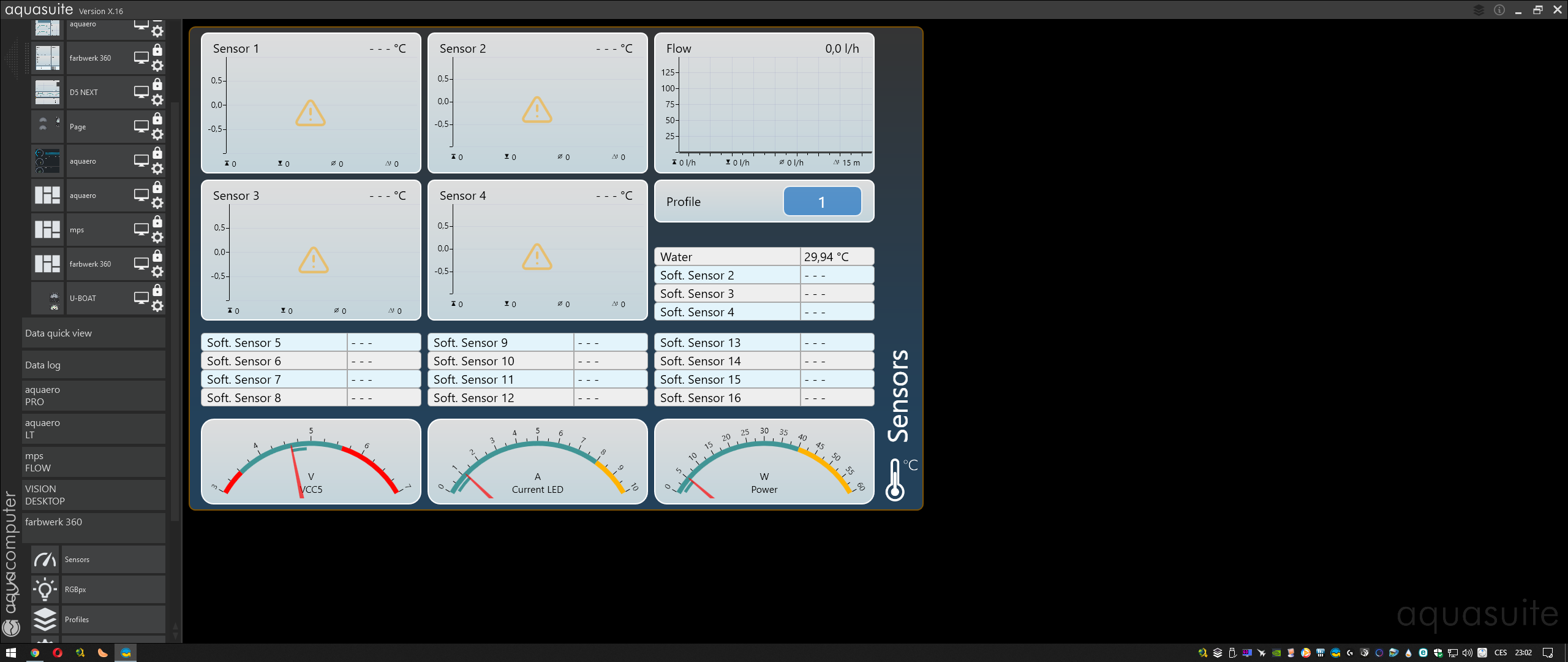

Please post same picture as I in the bottom.

Definitely I think that problem is in the weak PSU or bad PSU cables, molex male or connector to PSU if you have modular PSU (especialy bad crimp).

»AE5probigNGslave« hat folgendes Bild angehängt:

Maki911

Junior Member

Montag, 20. April 2020, 12:15

I use Corsair RMi 1000, with custom cables but I did connect Farbwerk on separate PSU that I jump started....

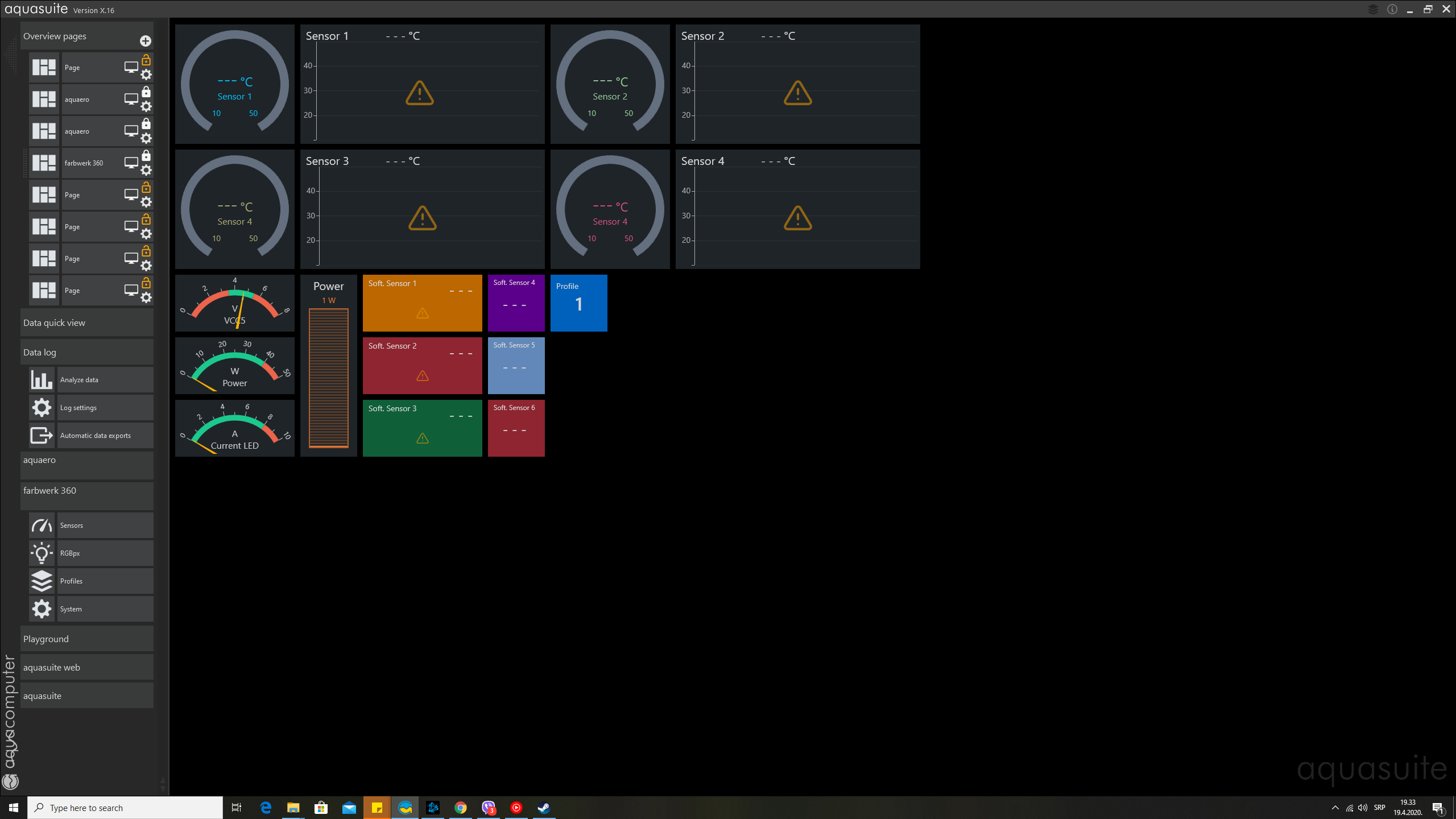

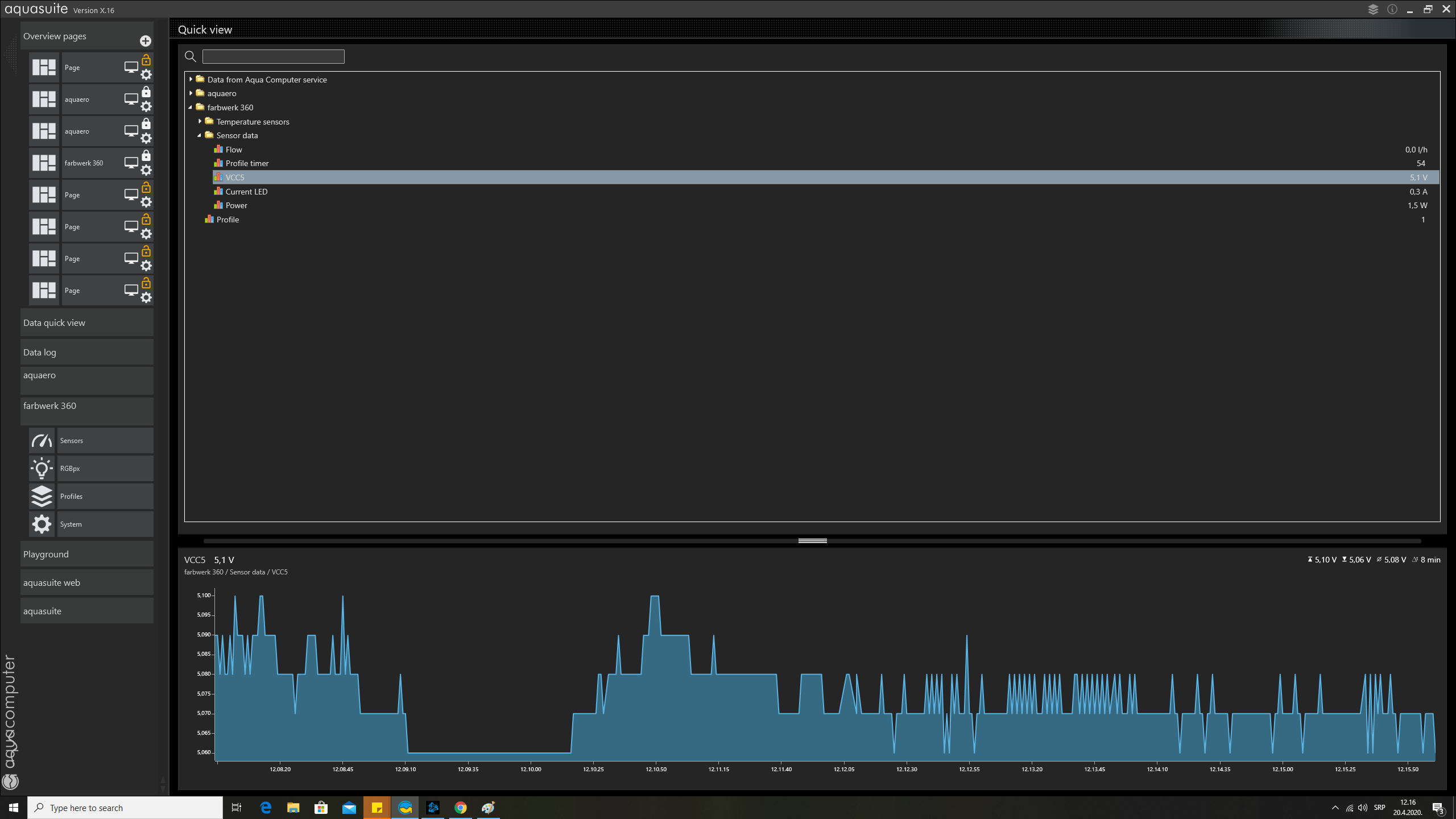

Here are the screenshoots you asked, is that good/bad?
This is what I get with Corasir PSU. :thumbup:

3 connected strips work separately, I will try connecting them in one line to see if it will work...

»Maki911« hat folgende Bilder angehängt:

Dieser Beitrag wurde bereits 1 mal editiert, zuletzt von »Maki911« (20. April 2020, 12:19)

Maki911

Junior Member

Montag, 20. April 2020, 12:49

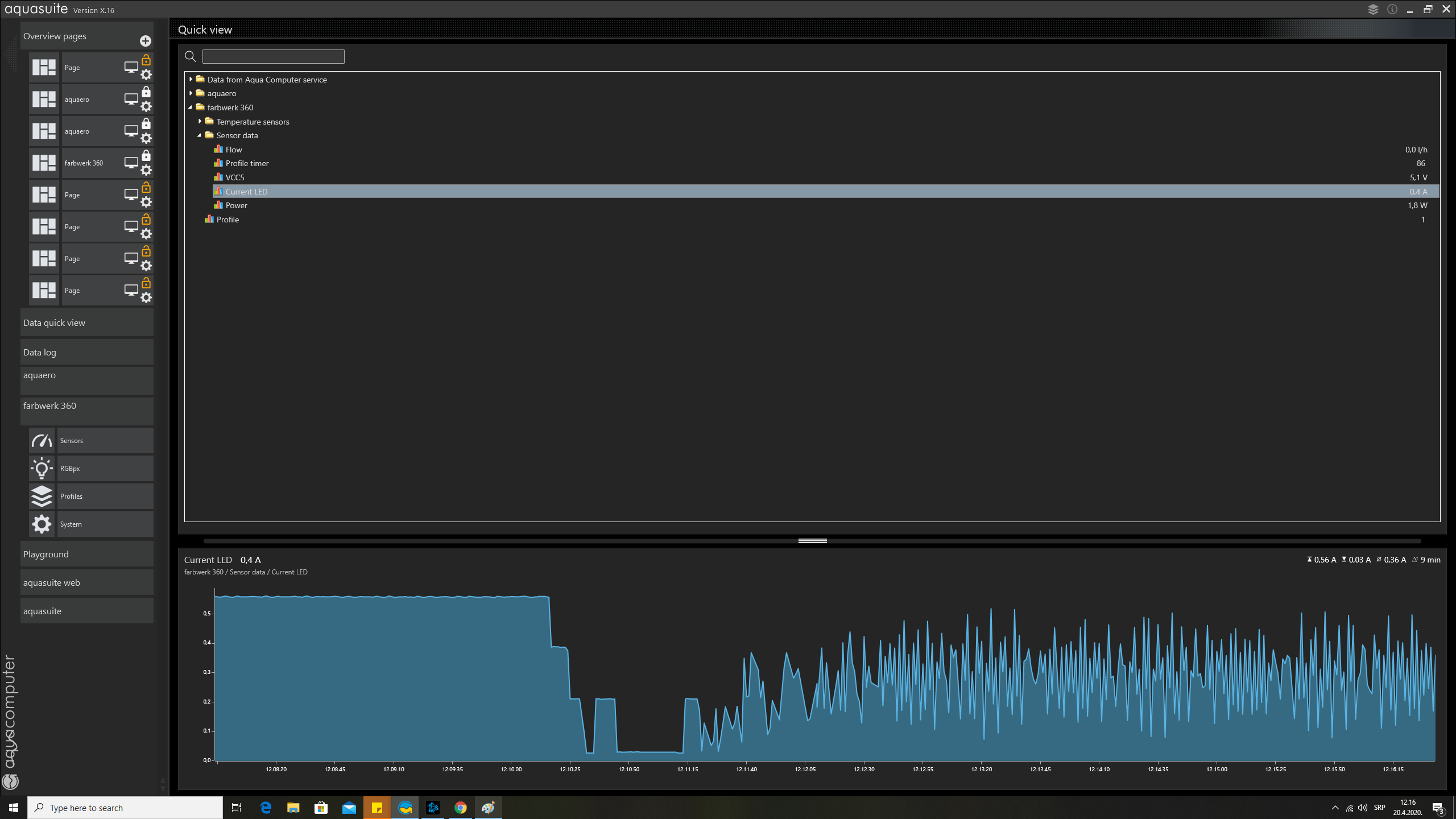

This is after connecting all 4 LED strips on one RGBpx channel. Is that ok value?
I cant change controllers(like just to have ambientPx-which doesnt work at all...) without auto -turning off LED strips 2-3-4, then just the first one works. After factory reset , it works again, all 4 strips on 1 channel.

»Maki911« hat folgendes Bild angehängt:

AE5probigNGslave

Junior Member

Montag, 20. April 2020, 23:10

Zitat von »Maki911«

This is after connecting all 4 LED strips on one RGBpx channel. Is that ok value?
I cant change controllers(like just to have ambientPx-which doesnt work at all...) without auto -turning off LED strips 2-3-4, then just the first one works. After factory reset , it works again, all 4 strips on 1 channel.

Thats mean, everything work and you are RGBpx happy?

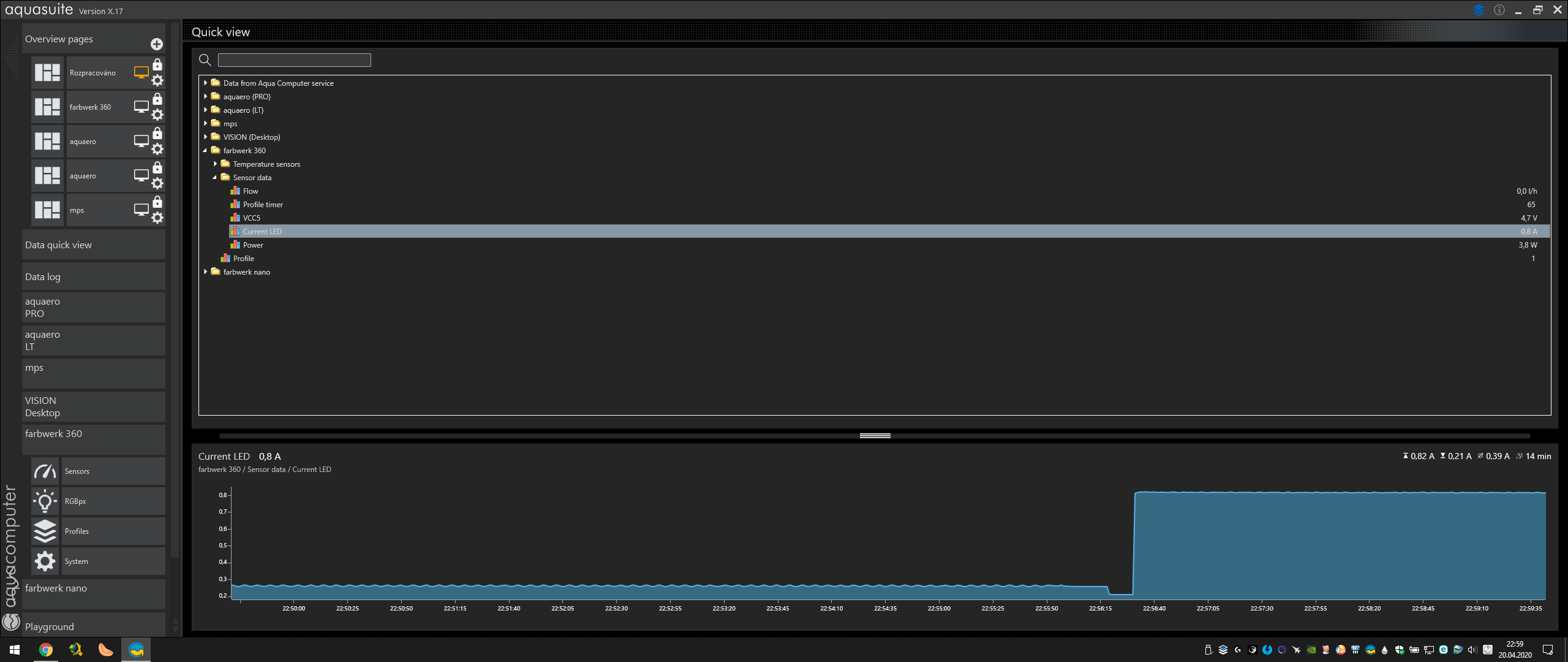

See my values in the bottom. I think that values depend on LED mode (only solid colour or effect). I think that values are OK, important is there is no error message.
